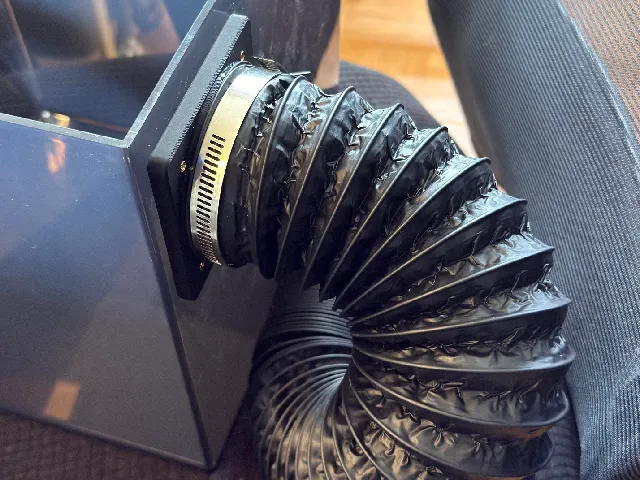

80mm Duct Adapter for Elegoo Mars 5 Lid
Prashant Sinha · Printables
ÜcretsizCreative Commons — Attribution — Share Alike
This adapter allows connecting 80mm duct hoses to the cutout on Mars 5 lid. With channel for a gasket.
♥ 6 · ↓ 59
