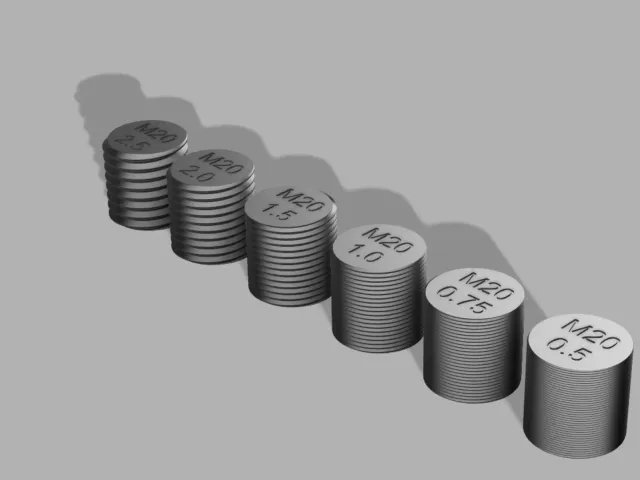

M20x thread samples and benchmark
loeschzwerg · Printables
ÜcretsizCreative Commons — Public Domain
For a project I needed to check thread size. This came in handy. Can also benchmark thread overhang consistency.
♥ 5 · ↓ 126
