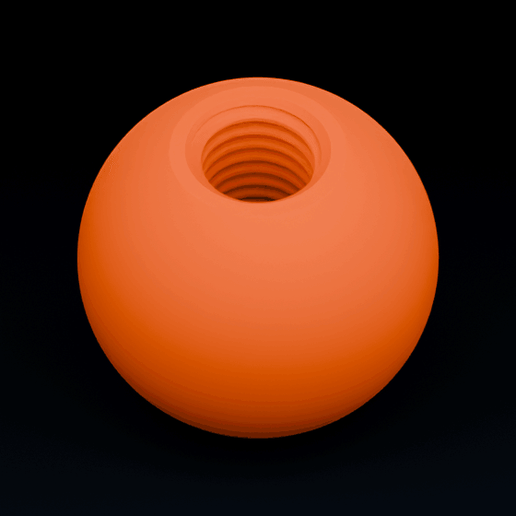

Threaded ball 30 mm M10 – printed internal thread, flat base

A 30 mm ball with a printed M10 internal thread that screws straight onto an M10 rod, bolt or lever – no insert, no glue. **Uses:** ball knob for levers and machines (lathe, mill, drill press); cap for a protruding M10 rod or bolt end. ## Dimensions (measured on the CAD solid) | | mm | |---|---| | Ball Ø / height on the base | 30 / 28.42 | | Flat base Ø | 13.4 | | Thread | M10 × 1.5, ISO 60°, printed | | Major / minor Ø in the model | 10.31 (+0.3) / 8.69 | | Full thread / usable depth / cone ti…
