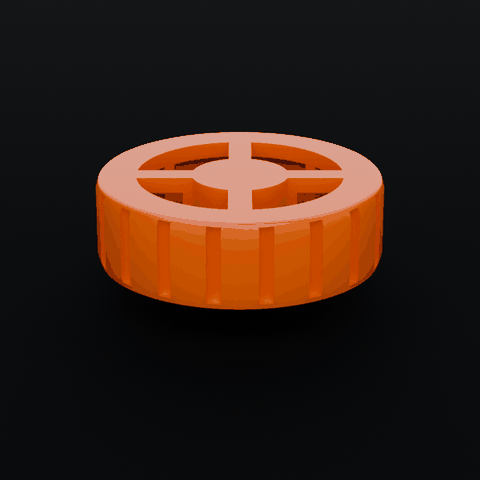

Handwheel for Round shaft 5/16 in (7.9375 mm) - 4 sizes 30/36/44/54 mm, no supports

$1,11CULTS PU - Private Use

A spoked handwheel. Uses about a third less material than a solid knob of the same diameter and gives the feel of a valve wheel. 5/16 inch is 7.9375 mm. The nearest metric shaft is 8 mm, and a knob bored for 8 sits loose on this one - six hundredths sound like nothing until the knob wobbles. ## Sizes in the download All 4 diameters, same shaft fitting: | Diameter | Height | Volume | Weight in PETG | |---|---|---|---| | 30 mm | 19.6 mm | 4.2 cm³ | 5.3 g | | 36 mm | 19.6 mm | 5.4 cm³ | 6.9 g | |…

♥ 0

Cults3D'da aç

#control knob #knob #handwheel #79375mm shaft #valve #tap #radiator valve #control knob for potentiometer #cam switch #fits 5/16 in = 79375 mm #no supports #parametric
